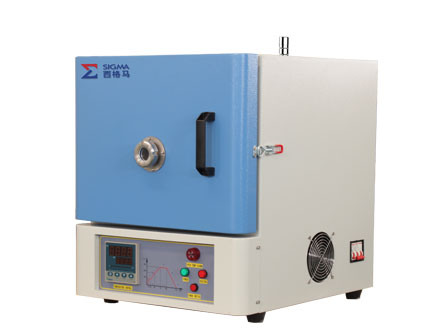

1200℃微型箱式炉7.2L-Small Muffle furnace
STR M8-12人工智能箱式电阻炉为实验室用小型箱式炉，该箱式加热炉采用含钼电炉丝加热，加热温度可达1200℃，炉膛尺寸为w200xd300xh120mm。
主要技术参数：
| 电炉名称 |
1200℃微型箱式炉 |
| 电炉型号 |
STR M8-12 |
|
Power 输入电源 |
Power rated: 2.5KW 额定功率：2.5KW |
|
voltage 电压 |
Voltage rated: AC208-240V 50/60HZ 额定电压： AC208-240V 50/60HZ |
|
Working Temperature 工作温度 |
Max. Temperature: 1200 °C 设计温度：1200℃ Operating temperature: ≤1100℃ 工作温度：≤1100℃ Recommended heating Rate: 15-40℃ /min 推荐升温速率：5-40℃/分钟 |
|
Temperature Controll 控温方式 |
Automatic PID control and self-tuning adjustment 全自动PID控制和自整定调节 30 programmable segments for precise thermal processing 人工智能化30段可编程控制 Built-in protection for the over-heated and broken thermocouple 超温和断偶报警功能 |
|
Thermocouple 测温元件 |
Type K thermocouple K型热电偶 |
|
Temperature Accuracy 控温精度 |
+/- 1℃ |
|
Dimensions 尺寸 |
Chamber size: 7.2L (w200xd300xh120mm) 腔炉膛尺寸：7.2L（w200xd300xh120mm） Boundary dimension: 435x550x540mm 外管尺寸：≈440x550x550mm Package size：580x620x750mm 包装尺寸：580x620x750mm |
|
Furnace Construction 炉子结构 |
High purity fibrous alumina insulation for maximum energy saving - 30% less power consumption than other brands 采用高纯氧化铝作为炉膛材料，最大程度减小能量损失，比一般加热炉减少30%能耗 The furnace body adopts a double-layer structure, and the air duct is set in the middle to ensure that the surface temperature of the furnace body and the temperature of the electrical control part do not exceed 60℃ 炉体采用双层结构，中间设置风道，保证炉体表面温度和电气控制部分温度不超过60℃ The use of spring door buckle, a good solution to the equipment bore due to high temperature shrinkage gap 采用弹簧门扣，很好的解决了设备内膛因高温产生的收缩缝隙 Equipped with inspection window on the front,convenient to to observe the situation inside the chamber 前门设有观察窗，便于观察腔体内部情形 |
|
Heating Elements 加热元件 |
Resistance wire 高温电阻丝 |
|
Net Weight 净重 |
60kg |
|
Rough weight 毛重 |
80kg |
|
Warranty 质保 |
Warranty period: one year (except fragile and consumable parts) 质保周期：一年（易损易耗件除外） |
|
Caution 警示 |
The equipment is not sealed, and can not be put into toxic, harmful, inflammable and explosive gas. Can add the inlet port to pass through the inert gas or oxygen 此设备腔体不密封，不能通入有毒有害，易燃易爆气体。可以加装进气接头，通惰性气体或者氧气 Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating 在使用过程中炉膛表面可能出现细小裂纹。这是正常情况，裂纹可以用氧化铝涂层修复 You shall place the sample in to a crucible. Never place sample on the chamber bottom directly 建议将样品放进坩埚里。不要把样品直接放在腔底 |
|
Standard configuration 标准配置 |
Cushion brick 1 piece, high temperature gloves 1 pair, crucible pliers 1 piece 垫砖1块、高温手套1副、坩埚钳1把 |
